product introduce：The oval flat envelope and support ring types of filter bag are avaible from us.

|
Dust removal Filter Bag DSP is a kind of synthetic fiber filter material has good resistance to hydrolysis performance, apply continuous operating temperature of 125 ℃ to 140 ℃ condition.Good resistance to organic solvents, oxidants, inorganic and organic acids, and good hydrolysis resistance.Acrylic filter bags are mainly used in non-ferrous metal processing and smelting process, in carbon black, cement, lime, fertilizer and wet filtration industry.
The diameter of the filter bag is around 115mm to 200mm. The filter bag length is 2000-9000mm. The Specification of the commonly used filter bag is 125-170mm diameter, 2000-6000mm length.
The oval, flat, envelope and support ring types of filter bag are avaible from us, please be sure and don't hesitate to enquiry for us with detailed information.
•FILTER BAG SPECIFICATION
| Model | Material |
Gramage |
Thickness |
Working Temperature |
Max. Surge Temperature |
Acid-resistance | Alkali-resistance |
|
(g/m²) |
(mm) |
(℃) |
(℃ ) |
||||
| YT-06BD1 | polyester needle felt | 500 | 1.8 | ≤130 | 150 | excellent | good |
| YT-06BD2 | pps needle felt | 500 | 1.8 | ≤190 | 230 | excellent | excellent |
| YT-06BD3 | fiberglass | 1000 | 2.1 | ≤280 | 300 | excellent | excellent |
| YT-06BD4 | acrylic fibers | 500 | 2 | ≤160 | 180 | commonly | commonly |
| YT-06BD5 |
fibberglass P84 fiber |
800 | 2 | ≤280 | 300 | good | good |

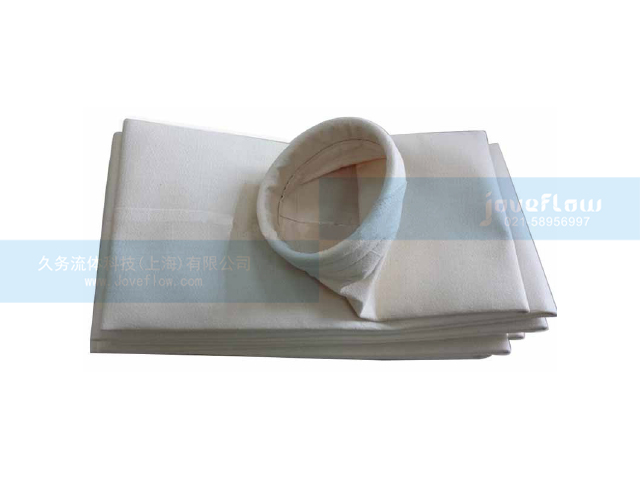

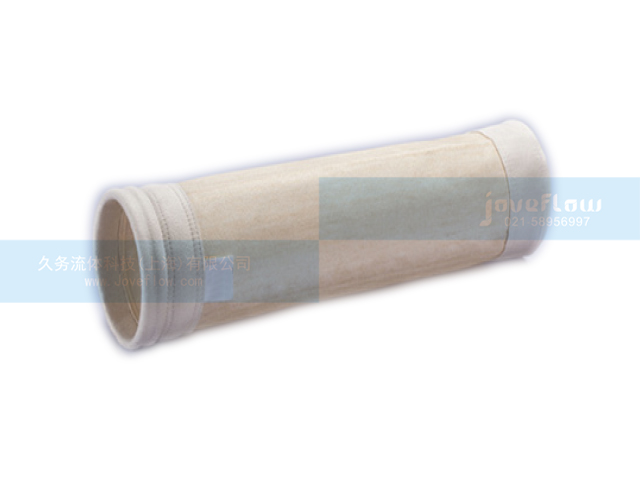

• FILTER BAG PICTURE
•FILTER BAG FEATURE
1. Continuous working temperature of 130 degrees, no more than 150 degrees in an instant;
2. Good acid resistance and alkaline PH value between 3-11;
3. The relative humidity is less than 30%.
5. Chemical, coke, carbon black, dye, pharmaceutical, plastic and other fields of liquid solid separation and micromaterial recovery.

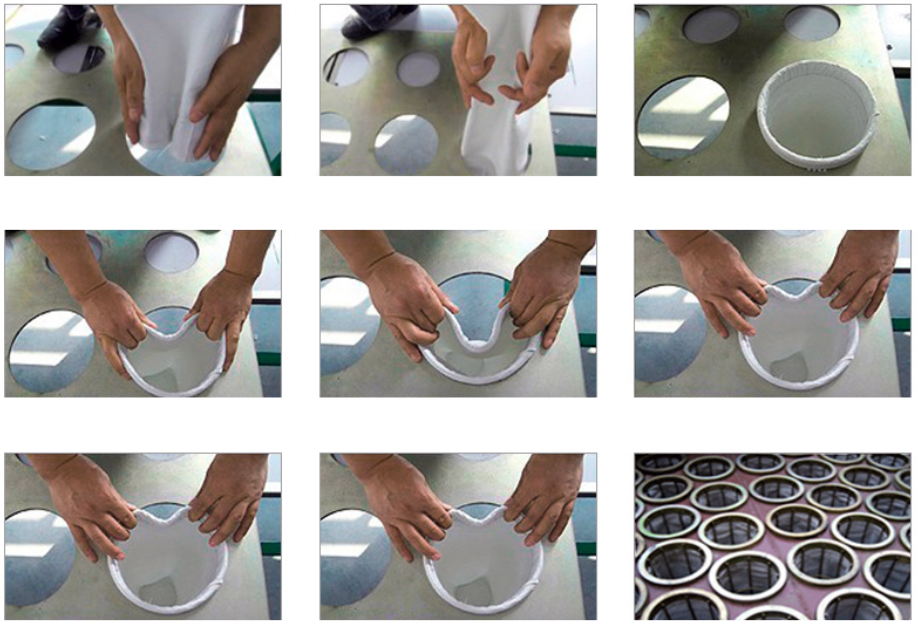

•FILTER BAG INSTALLATION
Good resistance to organic solvents oxidants inorganic and organic acids and good hydrolysis resistance.Acrylic filter bags are mainly used in non-ferrous me
